TM 9-2320-360-34-1
13-2. FRONT DRAG LINK REPLACEMENT
This task covers:
a. Removal
c. Follow-On Maintenance
b. Installation
INITIAL SETUP
Equipment Conditions
Materials/Parts
Front pitman arm removed (para 13-4).
Pin, Cotter (Item 219, Appendix F)
Tools and Special Tools
Tool Kit, Genl Mech (Item 211, Appendix E)
Jack Kit, Hydraulic Hand (Item 97, Appendix E)
Wrench Set, Socket, 3/4 In. Drive (Item 240,
Appendix E)
Wrench, Torque, 0-175 lb-Ft (Item 245,
Appendix E)
a.
Removal
WARNING
Drag link must be supported after
hardware to prevent it from falling.
Failure to comply may result in
injury.
(1)

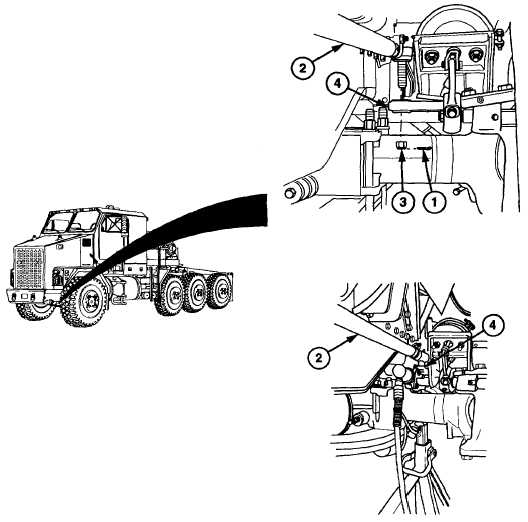

Remove cotter pin (1) from rear of drag
link (2). Discard cotter pin.
(2)
Remove nut (3) from drag link (2).
(3)
Remove drag link (2) from axle steering
arm
(4)
using hydraulic hand jack.
13-2
|
