TM 9-2320-360-34-1
NOTE
Tag and mark harness connectors
before disconnection.
(2)

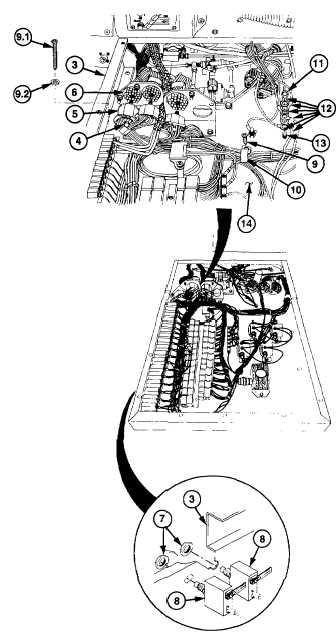

Loosen three screws (4) and remove
harness connectors (5) from sockets (6).
CAUTION
Failure
to
remove
DDEC
circuit
breakers from ECB will result in
damage to vehicle wiring.
NOTE
Tag and mark circuit breakers before
removal from ECB.
(3)
Remove two nuts (7) and DDEC circuit
breakers (8) from ECB (3).
NOTE
The four 2 in. (5 cm) screws are used
to retain the top doghouse insulation.
Mark locations of these four screws
for proper assembly.
(4)
Remove eight screws (9), four screws
(9.1), washers (9.2) and two clips (10)
from ECB (3).
(5)
Remove locknut (11) and six ground wires
no. 1435 (12) from screw (13) in
doghouse (14). Discard locknut.
Change 2 11-25
|
