TM 9-2320-360-34-1
11-5. BRAKE TREADLE VALVE REPAIR (CONT)
(8)

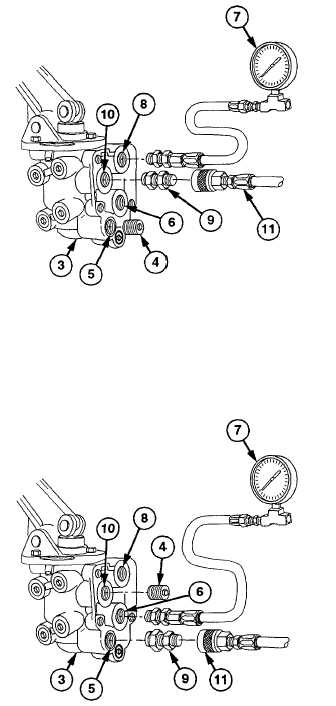

Remove air supply line (11) from air
supply fitting (9).
(9)
Remove two pipe plugs (4) from upper
ports (5 and 6) on backside of treadle
valve (3).
(10)
Remove air pressure gage (7) from lower
delivery port (8) on backside of treadle
valve (3).
(11)
Remove air supply fitting (9) from lower
supply port (10) on backside of treadle
valve (3).
(12)
Install two pipe plugs (4) in lower ports (8
and 10) on backside of treadle valve (3).
(13)
Install air pressure gage (7) in upper
delivery port (6) on backside of treadle
valve (3).
(14)
Install air supply fitting (9) in upper supply
port (5) on backside of treadle valve (3).
(15)
Install air supply line (11) on air supply
fitting (9).
11-22
|
