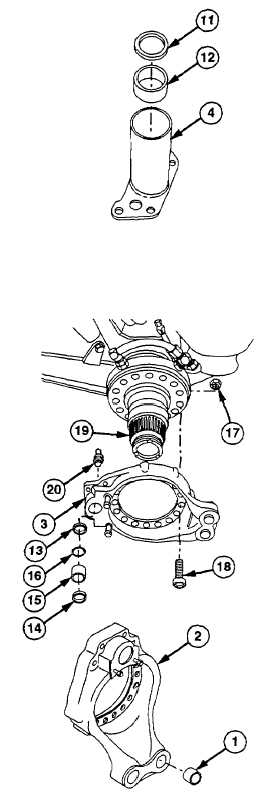

Position inner camshaft mounting plate (4)
in vise.
(6)
Remove seal (11) and bushing (12) from
inner
camshaft
mounting
plate
(4).
Discard seal.
NOTE
Seals can be driven out in either
direction.
(7)
Remove oil seal (13), seal (14), bushing
(15), and seal (16) from brake bracket (3).
Discard seals and oil seal.
(8)
Remove 10 locknuts (17) and sockethead
screws (18) from brake bracket (3) while
supporting
brake
bracket.
Discard
locknuts.
(9)
Remove brake bracket (3) from spindle
(19).
(10)
Remove two grease fittings (20) from
brake bracket (3).
b.
Disassembly
NOTE
Remove bushings only if they fail
inspection.
(1)
Remove two bushings (1) from brake
bracket (2).
