WARNING
Adhesive-sealant can burn easily,
can give off harmful vapors, and is
harmful to skin and clothing. To
avoid injury or death, keep adhesive-
sealant away from open fire and use
in well-ventilated area. If adhesive-
sealant gets on skin or clothing,
wash immediately with soap and
water.
(2)

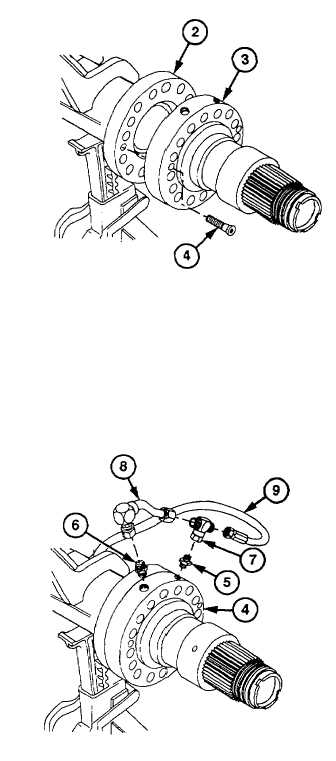

Coat mating surface of spindle (3) with
adhesive-sealant (Item 4, Appendix B).
(3)
Install spindle (3) on axle housing (2).
(4)
Install two screws (4) in spindle (3) while
supporting spindle (3). Tighten screws to
180-240 lb-in. (20-27 Nm).
WARNING
Pipe thread sealing compound can
burn easily, can give off harmful
vapors, and is harmful to skin and
clothing. To avoid injury or death,
keep away from open fire and use in
well-ventilated area. If pipe thread
sealing compound gets on skin or
clothing, wash immediately with soap
and water.
CAUTION
Use pipe thread sealing compound
sparingly only on pipe threads. Do
not
apply
compound
to
hose
connections. Damage to equipment
may result.
(5)
Coat threads of fitting (5) and fitting (6)
with pipe thread sealing compound.
(6)
Install fitting (5) and fitting (6) on spindle
(3).
(7)
Install tee (7) on fitting (5).
(8)
Install tube assembly (8) on tee (7) and
fitting (6).
(9)
Install hose (9) on tee (7).
f.
Follow-On Maintenance
Install brake bracket (para 11-4).
