10-8. AXLE NO. 2 AND AXLE NO. 3 SPINDLE AND AXLE SHAFT REPAIR (CONT)
d.
Assembly
WARNING
Adhesive-sealant can burn easily,
can give off harmful vapors, and is
harmful to skin and clothing. To
avoid injury or death, keep adhesive-
sealant away from open fire and use
in well--ventilated area. If adhesive-
sealant gets on skin or clothing,
wash immediately with soap and
water.
NOTE
Do steps (1) thru (3) only if parts were
removed.

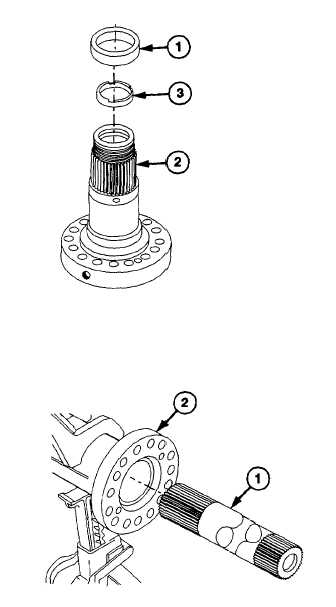

(1)
Coat inside surface of seal ring (1) with
adhesive-sealant (Item 3, Appendix B).
(2)
Install seal ring (1) on spindle (2).
(3)
Install spindle ring (3) on spindle (2).
e.
Installation
NOTE
Press down on outside end of axle
shaft when installing in order to get
axle engaged in carrier.
(1)
Install axle shaft assembly (1) in axle
housing (2).
