TM 9-2320-360-34-1
(26)

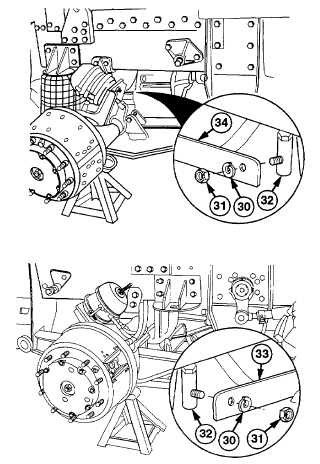

Install new lockwasher (30), nut (31), and
ball joint (32) on right bracket (33).
(27)
Repeat step (26) for left bracket (34).
c.
Follow-On Maintenance
(1)
Install air springs (TM 9-2320-360-20).
(2)
Install no. 2 axle to no. 3 axle and no. 3
axle to no. 4 axle propeller shafts
(TM 9-2320-360-20).
(3)
Install
shock
absorbers
(TM 9-2320-360-20).
(4)
Fill axle differential and wheel ends
(LO 9-2320-360-12).
(5)
Install brake drums (TM 9-2320-360-20).
(6)
Install lateral torque rod (para 15-3).
(7)
Adjust ride height (TM 9-2320-360-20).
(8)
Align axle no. 3 (para 10-5).
10-21
|
