TM 9-2320-360-34-1
10-3. AXLE NO. 3 REPLACEMENT (CONT)
NOTE
It
may
be
necessary
to
tap
suspension beam out of axle bracket
and frame hanger.

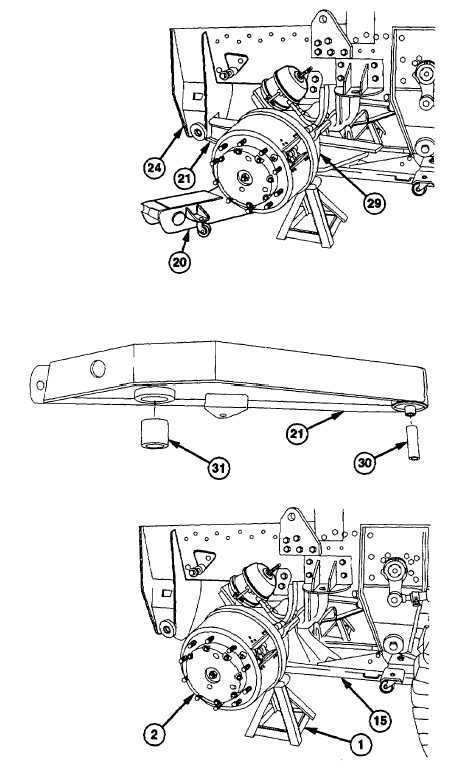

(13)
Lower
floor
jack
(20)
and
remove
suspension beam (21) from axle bracket
(29) and frame hanger (24).
(14)
Remove delrin liner (30) and steel sleeve
(31) from suspension beam (21). Discard
delrin liner and steel sleeve.
(15)
Repeat steps (10) thru (14) for other
suspension beam.
WARNING
Axle weighs approximately 1760 lb
(798 kg). Keep out from under axle.
Failure to comply may result in injury
or death to personnel.
NOTE
Air pressure must be greater than 65
psi (448 kPa) to provide sufficient
clearance to remove axle.
(16)
Raise transmission lift (15) enough to lift
axle assembly (2) and remove jackstands
(1).
(17)
Lower transmission lift (15) and axle (2) to
lowest position.
(18)
Remove transmission lift (15) and axle
assembly (2) from under HET Tractor with
aid of assistant.
10-16
|
