TM 9-2320-360-34-1
WARNING
Suspension beam is heavy and can
fall.
Keep
out
from
under
suspension
beam.
Failure
to
comply may result in injury to
personnel.
NOTE

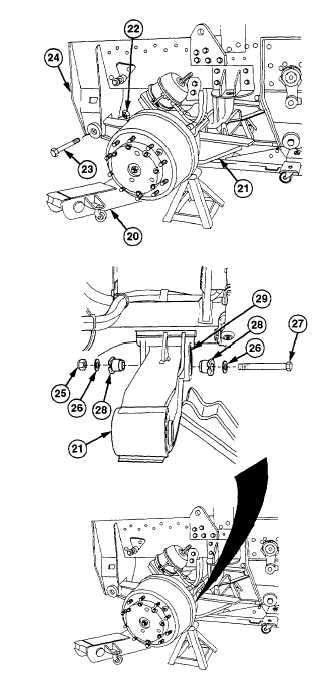

Both suspension beams are removed
the same way. Left side is shown.
(10)
Place floor jack (20) under center of
suspension beam (21).
(11)
Remove locknut (22) and screw (23) from
suspension beam (21) and frame hanger
(24). Discard locknut and screw.
NOTE
Screw, washer, and outside collar are
removed together.
(12)
Remove locknut (25), two washers (26),
screw (27), and two collars (28) from
suspension beam (21) and axle bracket
(29). Discard locknuts, washers, screws,
and collars.
10-15
|
