TM 9-2320-360-34-1
10-2. AXLE NO. 2 REPLACEMENT
This task covers:
a. Removal
c. Follow-On Maintenance
b. Installation
Initial Setup:
Equipment Conditions
Tools and Special Tools (Cont)
Brake drums removed (axle no. 2 only)
Wrench, Open-End, 1-11/16 in. and 1-7/8 in.,
(TM 9-2320-360-20).
(Item 234, Appendix E)
Differential and wheel ends drained (axle no. 2
Wrench Set, Socket, 1 in. Drive (Item 239,
only) (LO 9-2320-360-12).
Appendix E)
Air springs removed (axle no. 2 only)
Wrench Set, Socket, 3/4 in. Drive (Item 240,
(TM 9-2320-360-20).
Appendix E)
Shock absorbers removed (axle no. 2 only)
Wrench, Torque, 0-600 Lb-Ft (Item 242,
(TM 9-2320-360-20).
Appendix E)
Propeller shafts removed (transfer case to
axle no. 2 and axle no. 2 to axle no. 3)
Materials/Parts
(TM 9-2320-360-20).
Adhesive-Sealant (Item 8, Appendix B)
Lateral torque rod removed (para 15-3).
Caps, Shipping and Sealing (Item 13,
Appendix B)
Tools and Special Tools
Oil, Lubricating (Item 48, Appendix B)
Tool Kit, Genl Mech (Item 211, Appendix E)
Ties, Cable, Plastic, (Item 60, Appendix B)
Adapter, Socket Wrench, 1/2 in. Female - 3/4
Bolt Kits, Beam Hanger (2) (Item 3, Appendix F)
In. Male (Item 4, Appendix E)
Bolt Kits, Bushing (2) (Item 4, Appendix F)
Jack, Floor 10-Ton (Item 95, Appendix E)
Locknuts (4) (Item 87, Appendix F)
Jackstands (4) (Item 98, Appendix E)
Lift, Transmission and Differential (Item 100,
Special Environmental Conditions
Appendix E)
HET Tractor parked on hard, level surface.
Multiplier, Torque (Item 104, Appendix E)
Sling, Endless Strap (Item 168, Appendix E)
Personnel Required
Wrench, Combination, 1-1/2 in. (Item 223,
Two
Appendix E)
Wrench, Impact, Electric, 1 in. (Item 232,
Appendix E)
a.
Removal

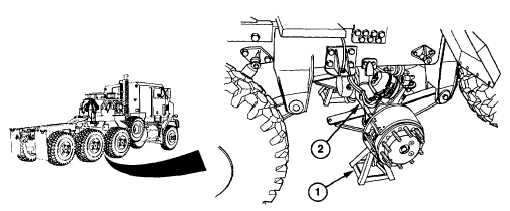

(1) Place jackstand (1) under each end of axle assembly (2).
10-2
|
