TM 9-2320-360-34-1
(15)

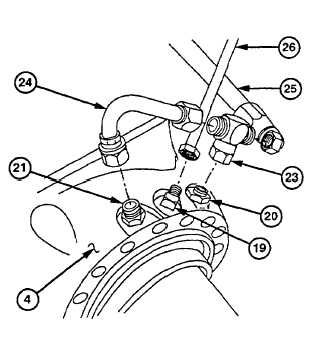

Install fitting (21), elbow (19), and fitting
(20) on spindle (4).
(16)
Install tee (23) on fitting (20).
(17)
Install tube assembly (24) on tee (23) and
fitting (21).
(18)
Install hose (25) on tee (23).
(19)
Install hose (26) on elbow (19).
f.
Follow-On Maintenance
(1)
Install axle no. 1 brake bracket and camshaft (para 11-3).
(2)
Install tie rod end (TM 9-2320-360-20).
(3)
Install front brake chamber (TM 9-2320-360-20).
(4)
Install drag link (left side only) (para 13-2).
(5)
Fill differential (LO 9-2320-360-12).
(6)
Adjust steering stops (para 13-9).
Change 1 9-23 (9-24 blank)
|
