TM 9-2320-360-34-1
(4)

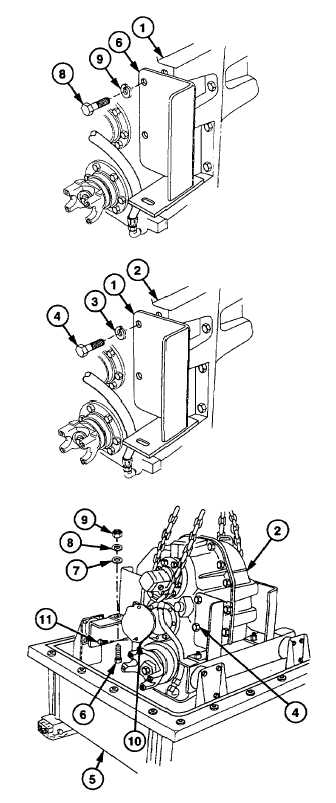

Remove two screws (8), lockwashers (9),
and bracket (6) from transfer case (1).
Discard lockwashers.
(5)
Repeat step (4) for other three brackets.
c.
Transfer Case Installation
(1)
Install bracket (1) on transfer case (2) with
two new lockwashers (3) and screws (4).
Do not tighten.
(2)
Repeat step (1) for other three brackets.
WARNING
Transfer case weighs 965 lb (438 kg).
Keep out from under transfer case
when supported by lifting device to
prevent serious injury to personnel.
(3)
Align and install transfer case (2) in lower
container (5) with eight screws (6),
washers (7), new lockwashers (8), and
nuts (9).
(4)
Tighten nuts (9) to 31-37 lb-ft (42-50
Nm).
(5)
Tighten screws (4) to 71-83 lb-ft (96-112)
Nm).
(6)
Remove lifting device.
(7)
Install cover plate (10) on transfer case (2)
with two screws (11).
Change 1 8-3
|
