8-2. TRANSFER CASE CONTAINER UNPACKING/PACKING
This task covers:
a. Upper Container Removal
c.
Transfer Case Installation
b. Transfer Case Removal
d.
Upper Container Installation
INITIAL SETUP
Tools and Special Tools
Materials/Parts
Tool Kit, Genl Mech (Item 202, Appendix E)
Lockwashers (8) (Item 122, Appendix F)
Sling Assemblies (2) (Item 160, Appendix E)
Wrench, Torque, 0-175 Lb-Ft (Item 236,
Appendix E)
a.

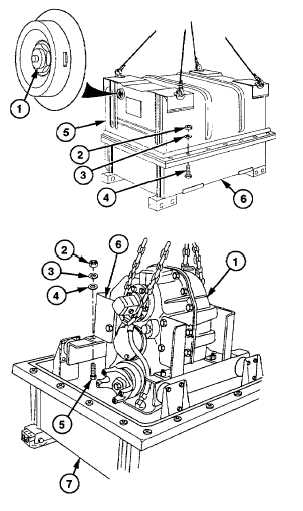

Upper Container Removal
(1)
Release air pressure at vent valve (1).
(2)
Remove 20 nuts (2), washers (3), and
screws (4).
WARNING
Keep out from under heavy parts.
Falling parts may cause serious
injury or death.
(3)
Attach suitable lifting device and remove
upper container (5) from lower container
(6).
b.
Transfer Case Removal
(1)
Attach suitable lifting device to transfer
case (1).
(2)
Remove eight nuts (2), lockwashers (3),
washers (4), and screws (5) from four
brackets (6). Discard lockwashers.
WARNING
Transfer case weighs 965 lb (438 kg).
Keep out from under transfer case
when supported by lifting device to
prevent serious injury to personnel.
CAUTION
To prevent contamination, auxiliary
steering pump cover plate must
remain installed until transfer case is
installed in vehicle. Failure to
comply may result in damage to
equipment.
(3)
Remove transfer case (1) from lower
container (7).
