TM 9-2320-360-34-1
6-15. DDEC II WIRE HARNESS REPLACEMENT (CONT)
(6)

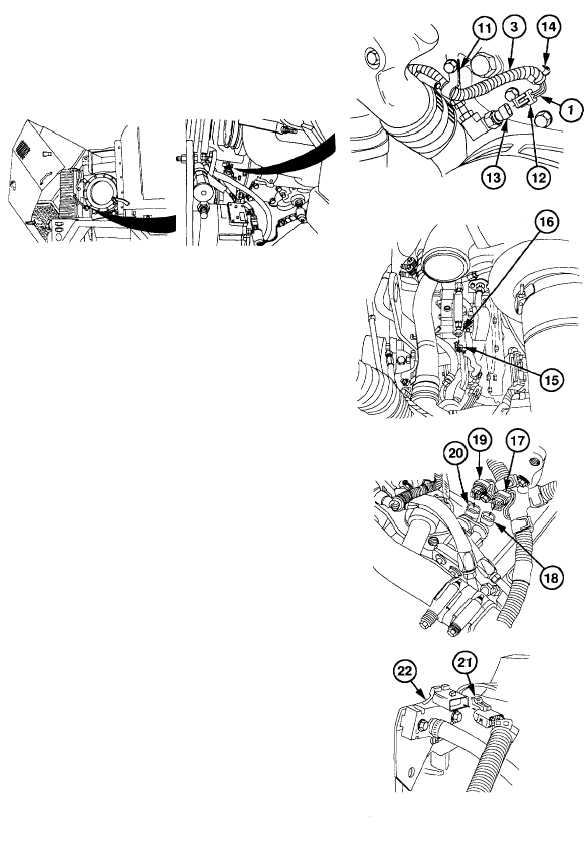

Install DDEC II wire harness (1) in
clip (11) and close clip.
(7)
Install electrical connector (12) on
oil temperature sender (13).
(8)
Install DDEC II wire harness (1)
and wire loom (3) in clip (14) and
close clip.
(9)
Install electrical connector (15) on
fuel temperature sensor (16).
(10)
Install electrical connector (17) on
TRS sensor (18).
(11)
Install electrical connector (19) on
SRS sensor (20).
(12)
Install electrical connector (21) on
turbo boost sensor (22).
6-190 Change 3
|
