TM 9-2320-360-34-1
6-13. ELECTRONIC CONTROL BOX WIRE HARNESS REPLACEMENT (CONT)
(57)

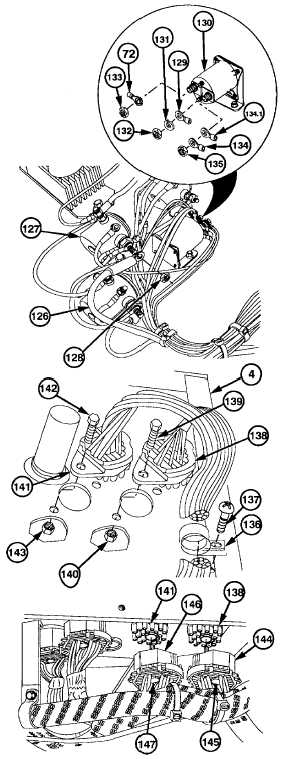

Install wire no. 1402 (126) on relay (127)
with nut (128).
(58)
Install wire no. 1640 (129) on relay (130)
with new lockwasher (131) and nut (132).
(59)
Install wire no. 1281 (72) on relay (130)
with nut (133).
(60)
Install wire no. 1702 (134) and wire no.
1488 (134.1) on relay (130) with nut (135).
(61)
Install cushion clip (136) on electronic
control box (4) with screw (137).
(62)
Install cab wire harness orange connector
(138) on electronic control box (4) with two
screws (139) and new locknuts (140).
(63)
Install cab wire harness green connector
(141) on electronic control box (4) with two
screws (142) and new locknuts (143).
NOTE
Post in connector must align with tab
on receptacle.
(64)
Install orange connector (144) on cab wire
harness orange connector (138) and
tighten screw (145).
(65)
Install green connector (146) on cab wire
harness
green
connector
(141)
and
tighten screw (147).
6-180 Change 1
|
