TM 9-2320-360-34-1
NOTE
Ground wires should be placed in
locations marked during removal.
(50)

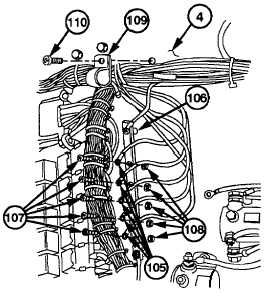

Install eight ground wires no. 1435 (105)
on ground strip (106) with five screws
(107) and new locknuts (108).
(51)
Install cushion clip (109) on electronic
control box (4) with screw (110).
(52)
Install wire no. 1055 (111) on relay (112)
with new lockwasher (113) and nut (114).
(53)
Install ground wire no. 1435 (115) on
relay (112) with new lockwasher (116) and
nut (117).
(54)
Install wire no. 1045 (118) on relay (112)
with nut (119).
(55)
Install wire no. 1107 (120) on relay (121)
with nut (122).
(56)
Install wire no. 1189 (123) on relay (121)
with new lockwasher (124) and nut (125).
Change 1 6-179
|
