TM 9-2320-360-34-1
6-13. ELECTRONIC CONTROL BOX WIRE HARNESS REPLACEMENT (CONT)
(21)

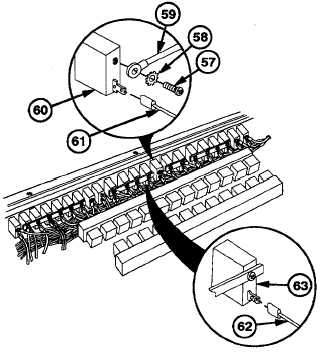

Remove screw (57), lockwasher (58), and
wire no. 1107 (59) from tachograph circuit
breaker (60). Discard lockwasher.
(22)
Remove wire no. 1931 (61) from
tachograph circuit breaker no. 22 (60).
(23)
Remove wire no. 1712 (62) from engine
brake circuit breaker (63).
6-168 Change 3
|
