6-8. CHASSIS WIRE HARNESS REPLACEMENT (CONT)
(19)

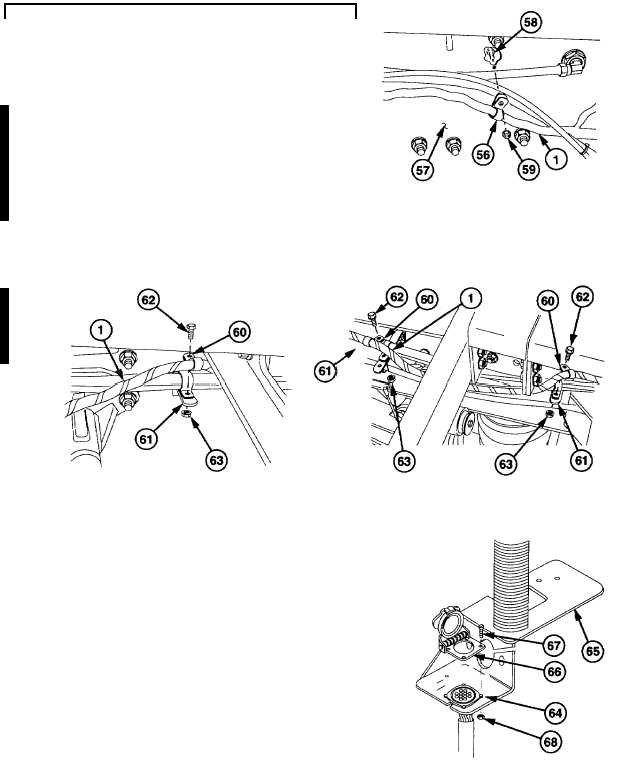

Install cushion clip (56) on right frame (57)
and harness (1) with screw (58) and new
locknut (59).
CAUTION
The cushion clips above axle no. 3
must be installed in the second hole
of the standoff bracket. Failure to
comply may result in height control
valve rod contacting air lines or
wiring harnesses.
(20)
Install three cushion clips (60) on standoff
brackets (61) and harness (1) with three
screws (62) and new locknuts (63).
NOTE
Position connector in bracket so
alignment
tab
inside
connector
socket faces front of truck and
hinged end of cover.
(21)
Install 12-pin trailer electrical connector
(64) on mounting bracket (65).
NOTE
Hinged end of cover must face front
of truck.
(22)
Install 12-pin trailer electrical connector
cover (66) on mounting bracket (65) with
four screws (67) and new locknuts (68).
