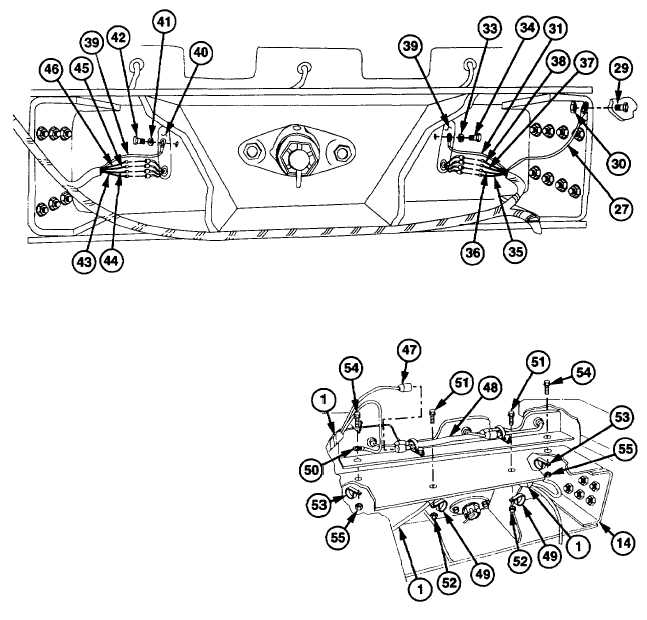

Install ground wire no. 1435 (27) on left frame (28) with screw (29) and new locknut (30).
(12)
Install ground wire no. 1435 (31) on left rear composite light (32) with new lockwasher (33) and screw (34).
(13)
Install wire no. 1678 (35), wire no. 1680 (36), wire no. 1012 (37), and wire no. 1003A (38) on left rear
composite light (32).
(14)
Install ground wire no. 1435 (39) on right rear composite light (40) with new lockwasher (41) and screw
(42).
(15)
Install wire no. 1678 (43), wire no. 1680 (44), wire no. 1012 (45), and wire no. 1004A (46) on right rear
composite light (40).
(16)
Connect wire no. 1012 (47) of harness (1)
to rear marker light wire harness (48).
(17)
Install two cushion clips (49) on rear
crossmember (14) and harness (1) with
two screws (51) and new locknuts (52).
(18)
Install two cushion clips (53) and ground
wire no. 1435 (50) on rear crossmember
(14) and harness (1) with two screws (54)
and new locknuts (55).
