TM 9-2320-360-34-1
(3)

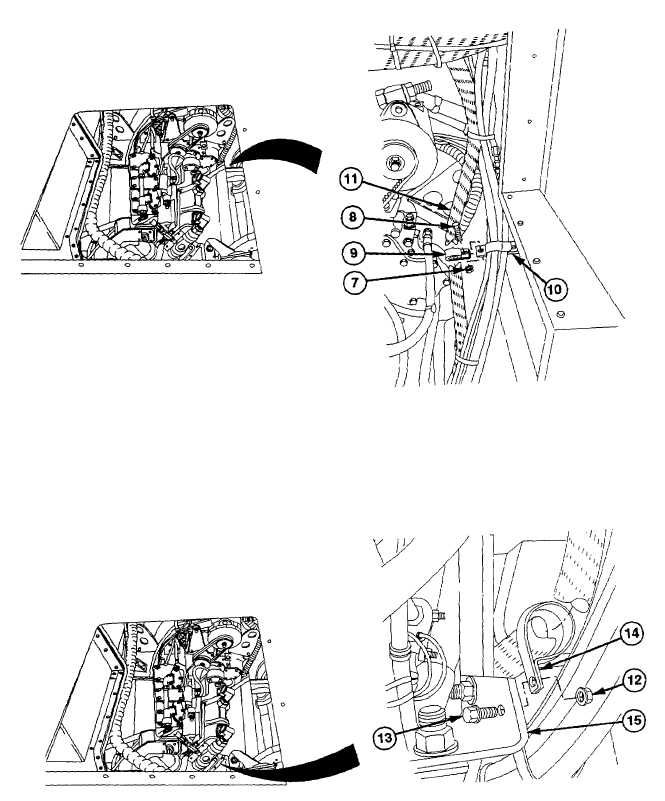

Remove locknut (7), screw (8), and
cushion clip (9) from standoff bracket (10)
and wire harness (11). Discard locknut.
(4)
Remove locknut (12), screw (13), and
cushion clip (14) from right side engine/
transmission cradle (15) and wire harness
(11). Discard locknut.
6-85
|
