TM 9-2320-360-34-1
6-8. CHASSIS WIRE HARNESS REPLACEMENT
This task covers:
a. Removal
c. Follow-On Maintenance
b. Installation
INITIAL SETUP
Equipment Conditions
Materials/Parts
Engine hood opened (TM 9-2320-360-10).
Grease, Anticorrosion (Item 31, Appendix B)
Exhaust heat shield removed
Tags, Identification (Item 56, Appendix B)
(TM 9-2320-360-20).
Ties, Cable, Plastic (Item 60, Appendix B)
Batteries disconnected (TM 9-2320-360-20).
Locknuts (31) (Item 96, Appendix F)
Access panels removed (TM 9-2320-360-20).
Locknuts (6) (Item 81, Appendix F)
Stowage box removed (TM 9-2320-360-20).
Locknuts (4) (Item 75, Appendix F)
Catwalk removed (TM 9-2320-360-20).
Locknuts (2) (Item 89, Appendix F)
Inner fender removed (left side only)
Locknuts (3) (Item 92, Appendix F)
(TM 9-2320-360-20).
Locknuts (2) (Item 94, Appendix F)
Lockwashers (7) (Item 120, Appendix F)
Tools and Special Tools
Lockwashers (6) (Item 118, Appendix F)
Tool Kit, Genl Mech (Item 202, Appendix E)
Lockwashers (4) (Item 122, Appendix F)
Wrench, Torque, 0-150 Lb-In. (Item 234,
Lockwashers (3) (Item 117, Appendix F)
Appendix E)
a.
Removal
NOTE
Tag and mark wires before removal.

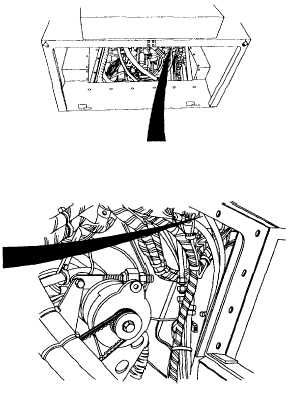

(1)
Loosen screw (1) and remove red harness
connector (2) from red cab connector (3).
(2)
Loosen screw (4) and remove orange
harness connector (5) from orange cab
connector (6).
6-84 Change 2
|
