TM 9-2320-360-34-1
6-6. CAB WIRE HARNESS REPLACEMENT (CONT)
(15)

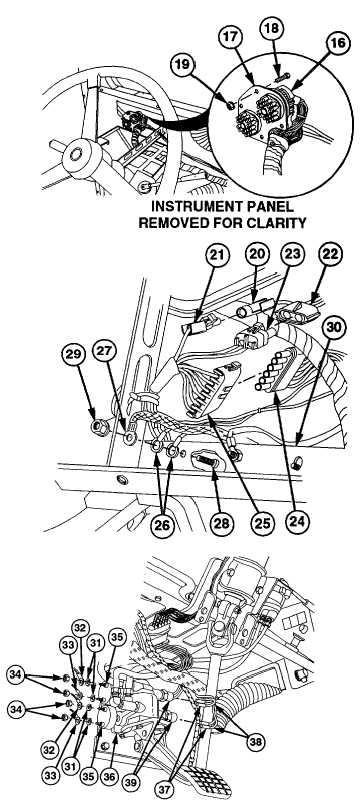

Install two cab wire harness connectors
(16) on bracket (17) with four screws (18)
and new locknuts (19).
(16)
Install electrical connector (20) on city
horn electrical connector (21).
(17)
Install
electrical
connector
(22)
on
headlight high beam electrical connector
(23).
(18)
Install
electrical
connector
(24)
on
directional lights electrical connector (25).
(19)
Install two ground wires no. 1435 (26),
ground strap (27), screw (28), and new
locknut (29) on dash (30).
(20)
Install four new lockwashers (31), two
wires no. 1005 (32), wires no. 1009 (33),
and four nuts (34) on two stoplight
switches (35) on brake treadle valve (36).
(21)
Install one each wire no. 1120 (37) and
ground wire no. 1435 (38) on each of two
low air pressure switches (39) on brake
treadle valve (36).
6-60
|
