TM 9-2320-360-34-1
(18)
Install stator ring terminals (37) on slip ring
end housing (6) and regulator studs (36)
with three tenz nuts (38).
(19)
Align screw holes on slip ring end housing
(6), stator (39), and drive end housing (1).
(20)

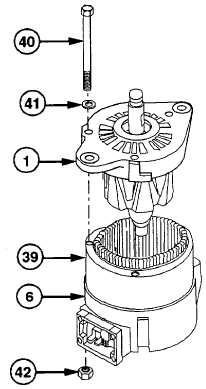

Install slip ring end housing (6) on drive
end housing (1) with three screws (40),
washers (41), and new locknuts (42).
(21)

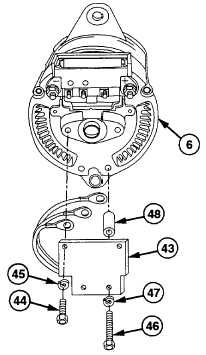

Install capacitor (43) on slip ring end
housing (6) with two screws (44), new
lockwashers
(45),
screws
(46),
new
lockwashers (47), and spacers (48).
6-27
|
