6-3. 24-VOLT ALTERNATOR REPAIR (CONT)
(16)

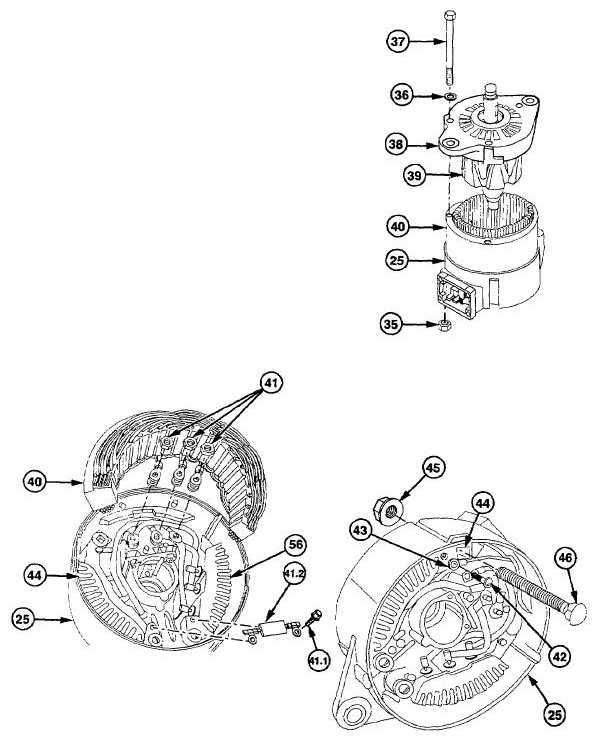

Remove three locknuts (35), washers (36),
and screws (37) from drive end housing (38)
and slip ring end housing (25). Discard
locknuts.
CAUTION
When
removing
rotor,
completely
separate rotor from stator. Stator will
still be attached to slip ring housing.
Do not attempt to separate stator from
slip ring housing. Failure to comply
may result in damage to stator wires.
NOTE
Rotor will remain attached to drive end
housing during removal.
(17)
Remove drive end housing (38) and rotor
assembly (39) from slip ring end housing
(25) and stator (40).
(18)
Remove three tenz nuts (41) and stator (40)
from slip ring end housing (25).
(18.1)
Remove two screws (41.1) and capacitor
(41.2) from positive rectifier (44) and
negative rectifier (56).
(19)
Remove screw (42) and wire (43) from
positive rectifier (44).
(20)
Remove tenz nut (45) and positive terminal
screw (46) from positive rectifier (44) and
slip ring end housing (25).
