TM 9-2320-360-34-1
NOTE
Vise is used to securely hold pulley for
step (9).
(8)

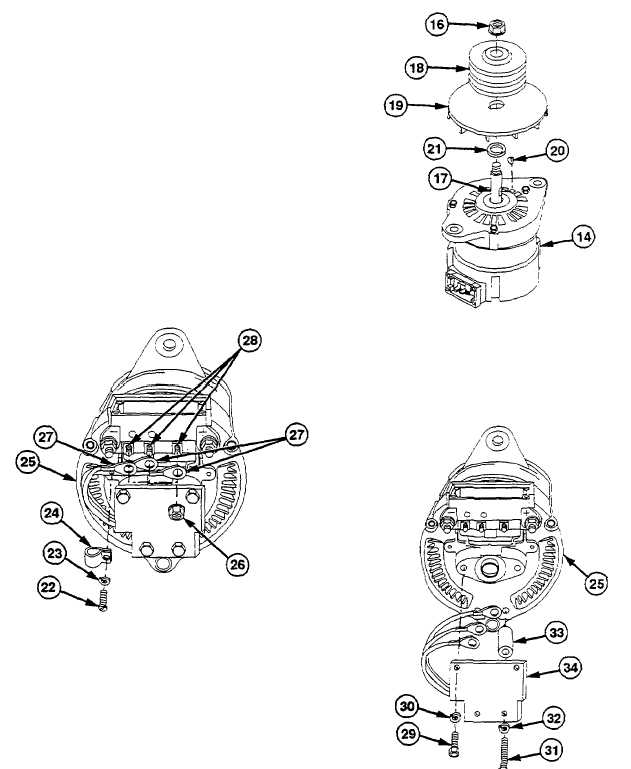

Position alternator (14) in vise.
(9)
Remove locknut (16) from shaft
(17). Discard locknut.
(10)
Remove alternator (14) from vise.
(11)
Remove pulley (18) from shaft (17).
(12)
Remove cooling plate (19), key (20),
and spacer (21) from shaft (17).
(13)
Remove screw (22), lockwasher
(23), and clip (24) from slip ring end
housing (25). Discard lockwasher.
(14)
Remove three tenz nuts (26) and
wires (27) from terminals (28).
(15)
Remove
two
screws
(29),
lockwashers
(30),
screws
(31),
lockwashers (32), spacers (33), and
capacitor (34) from slip ring end
housing (25). Discard lockwashers.
6-17
|
