TM 9-2320-360-34-1
NOTE
If using original brushes, wear pattern
must match radius of slip rings.
(28)

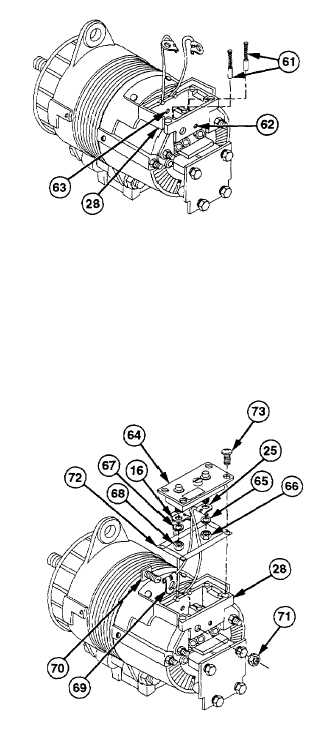

Insert two brushes (61) in regulator holder (28).
NOTE
Brush springs are held compressed
with 1/16 in. sockethead screw key to
aid installation of voltage regulator.
(29)
Compress brush springs (61). Install 1/16
in. sockethead screw key through pilot hole
(62) in rear of regulator holder (28), over
springs (61), and into pilot hole (63) inside
regulator holder (28).
CAUTION
Regulator can only be installed one way. Position regulator so brush pins are on
side facing pulley. Failure to comply may result in equipment damage.
NOTE
Regulator must be positioned close to holder to allow installation of wires.
(30)
Install red wire (25) on positive (+) terminal
of
voltage
regulator
(64)
with
new
lockwasher (65) and nut (66).
(31)
Install black wire (16) on negative (-)
terminal of voltage regulator (64) with new
lockwasher (67) and nut (68).
(32)
Install blue wire (69) and ignition (IGN) stud
(70) in regulator holder (28).
(33)
Install tenz nut (71) on ignition (IGN) stud (70).
CAUTION
Brush retaining pin must be removed
before tightening screws. Failure to
comply may result in damage to
regulator.
(34)
Position new gasket (72) and voltage
regulator (64) on regulator holder (28) with
four screws (73). Do not tighten.
(35)
Remove sockethead screw key from rear of
regulator holder (28).
(36)
Tighten
four
screws
(73)
on
voltage
regulator (64).
e.
Follow-On Maintenance
Install alternator (TM 9-2320-360-20).
6-15
|
