TM 9-2320-360-34-1
(59)

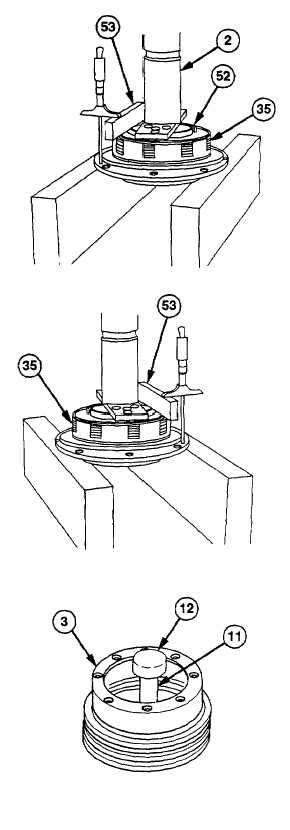

Position bearing retainer (35) in press.
NOTE
Tool no. 5 should be positioned on
raised tabs of pressure plate, with
center of tool over center of bearing
retainer.
(60)
Position tool no. 5 (2) across pressure
plate (52).
CAUTION
Press is used only to stabilize plates.
Do not apply excessive pressure to
pressure plate. Failure to comply
may result in damage to bearing
retainer.
(61)
Use tool no. 5 (2) to apply light pressure
on pressure plate (52).
(62)
Position tool no. 7 (53) across flat surface
of pressure plate (52).
(63)
Measure and record distance A between
top of tool no. 7 (53) and outer flange of
bearing retainer (35).
(64)
Measure and record distance B between
top of tool no. 7 (53) and outer flange of
bearing retainer (35) on opposite side
from distance A.
(65)
Calculate C by adding distance A to
distance B. Record answer.
(66)
Calculate D by dividing C by 2. Record
answer.
(67)
Calculate E by subtracting 1.0 in (25 mm)
from D. Record answer.
(68)
Calculate F by adding 0.125 in. (3.17
mm) to E. Record answer.
(69)
Position tool no. 8 (12) on bracket and
shaft assembly (11 ).
(70)
Position fan pulley (3) in press.
CAUTION
Press is used only to stabilize
bracket and shaft. Do not apply
excessive pressure to bracket and
shaft. Failure to comply may damage
fan pulley.
(71)
Use tool no. 8 (12) to apply light pressure
to bracket and shaft assembly (11).
5-35
|
