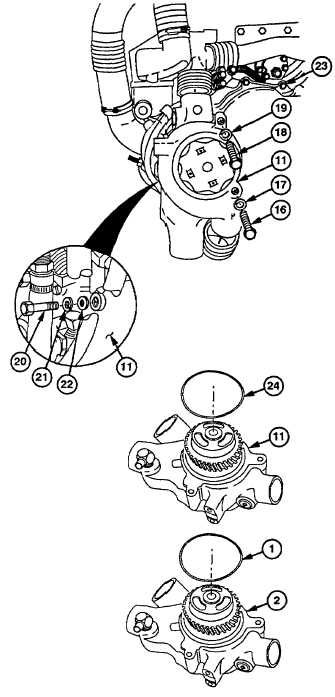

5-5. WATER PUMP REPLACEMENT (CONT)
(6)
Remove screw (16) and lockwasher (17)
from
water
pump
(11).
Discard
lockwasher.
(7)
Remove screw (18) and lockwasher (19)
from
water
pump
(11).
Discard
lockwasher.
CAUTION
Failure to properly support water
pump before removing final screw
may result in damage to water pump.
(8)
Remove screw (20), lockwasher (21), and
washer
(22)
from
water
pump
(11).
Discard lockwasher.
(9)
Remove water pump (11) from engine
(23) with aid of assistant.
(10)
Remove seal ring (24) from water pump
(11) Discard seal ring.
b.
Installation
(1)
Install new seal ring (1) on water pump
(2).
