TM 9-2320-360-34-1
5-5. WATER PUMP REPLACEMENT
This task covers
a. Removal
c. Follow-On Maintenance
b. Installation
INITIAL SETUP
Equipment Conditions
Tools and Specials Tools (Cont)
Cooling system drained (TM 9-2320-360-20).
Wrench, Torque, 0-300 Lb-In. (Item 235,
Fan removed (TM 9-2320-360-20).
Appendix E)
Secondary fuel filter head removed
(para 4-13).
Materials/Parts
Inner fender removed (right side only)
Chips, Soap (Item 15, Appendix B)
(TM 9-2320-360-20).
Lockwashers (3) (Item 121, Appendix F)
Ring, Retaining (Item 244, Appendix F)
Tools and Specials Tools
Ring, Seal (Item 256, Appendix F)
Tool Kit, Genl Mech (Item 202, Appendix E)
Ring, Seal (Item 257, Appendix F)
Dial Indicator, Magnetic (Item 32, Appendix E)
Pliers, Retaining Ring (Item 107, Appendix E)
Personnel Required
Pliers, Retaining Ring (Item 110, Appendix E)
Two
Wrench, Torque, 0-150 Lb-In. (Item 234,
Appendix E)
Wrench, Torque, 0-175 Lb-Ft (Item 236,
Appendix E)
a.
Removal
(1)
Deleted.
(2)

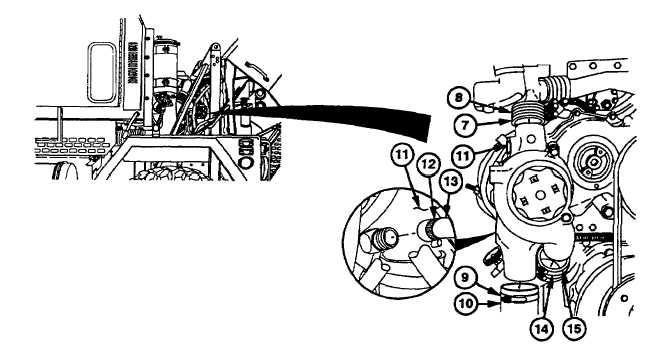

Loosen two hose clamps (7) on hose (8).
(3)
Loosen hose clamp (9) and disconnect
hose (10) from water pump (11).
(4)
Loosen hose clamp (12) and disconnect
hose (13) from water pump (11).
(5)
Loosen two hose clamps (14) on hose
(15).
Change 1 5-19
|
