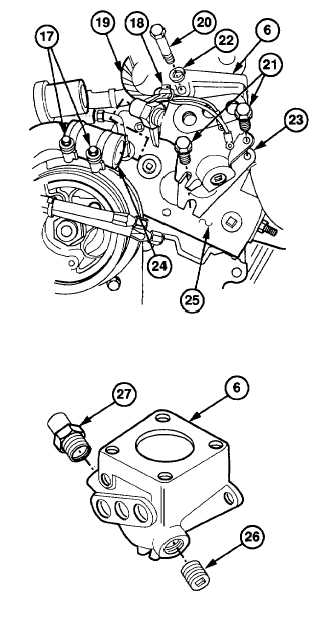

5-3. LEFT THERMOSTAT HOUSING REPLACEMENT (CONT)
(6)
Loosen two clamps (17).
NOTE
Location of plastic cable ties should
be marked before removal.
(7)
Remove cable tie (18) securing wiring
harness (19) from thermostat housing (6).
(8)
Remove three screws (20 and 21) and
lockwasher (22) from thermostat housing
(6). Discard lockwasher.
(9)
Remove thermostat housing (6), gasket
(23), hose (24), and two clamps (17) from
engine (25). Discard gasket.
(10)
Remove
plug
(26)
from
thermostat
housing (6).
(11)
Remove connector (27) from thermostat
housing (6).
b.
Cleaning/Inspection
CAUTION
Wear eye protection and use care
when scraping gasket material from
machined
surface
of
housing.
Damage to housing may result.
(1)
Scrape gasket material from thermostat
housing.
