NOTE
·
When property installed, shroud
mounting brackets and outlet
necks on top tank should be on
same
side
as
fan
shroud
mounting holes in side members.
·
Holes on bolting strip are closer
to one end than the other. These
ends must be positioned to
outside edge of radiator.
(11)

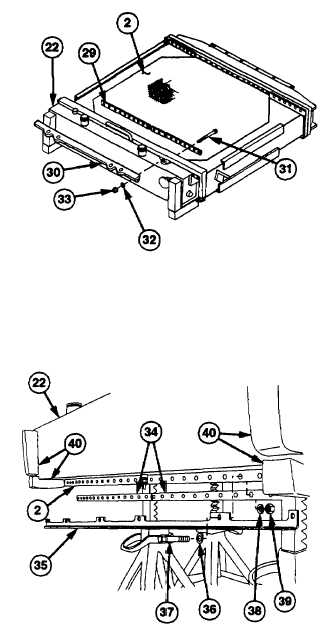

Position top tank (22), 2 bolting strips (29),
and mounting bracket (30) on radiator
core (2) with 32 screws (31), new
lockwashers (32), and nuts (33) with aid of
assistant. Do not tighten.
(12)
Position 2 bolting strips (34) and baffle
mounting bracket (35) on radiator core (2)
with 4 washers (36), 32 screws (37), new
lockwashers (38), and nuts (39). Do not
tighten.
(13)
Tighten nuts (8, 12, 16, 20, 25, 28, 33,
and 39) to 204-252 lb-in. (23-28.5 Nm).
WARNING
On direct contact, uncured silicone
sealant irritates eyes. In case of
contact, flush eyes with water and
seek medical attention. In case of
skin contact, wipe off and flush with
water.
NOTE
Do steps (14) and (15) only if foam
blocks were removed.
(14)
Coat four foam blocks (40) with silicone
adhesive-sealant
(15)
Install four foam blocks (40) on top tank
(22).
