TM 9-2320-360-34-1
(3)

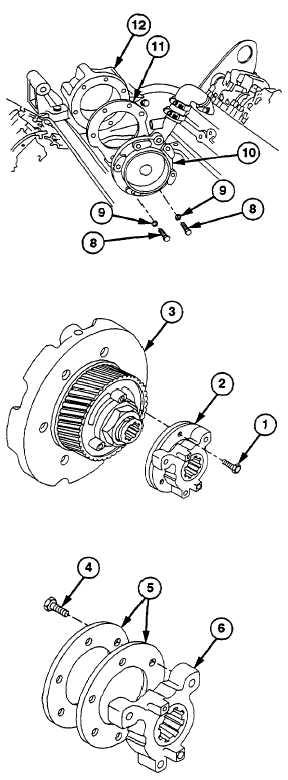

Remove two screws (8) and copper
washers (9) from blower driver assembly
(10). Discard copper washers.
NOTE
Location of blower drive assembly on
flywheel housing must be marked
before removal.
(4)
Remove blower drive assembly (10) and
gasket (11) from rear plate (12). Discard
gasket.
b.
Disassembly
(1)
Remove three screws (1) and accessory
drive hub (2) from blower drive assembly
(3).
(2)
Remove three screws (4) and two spring
plates (5) from accessory drive hub (6).
4-27
|
