TM 9-2320-360-34-1
4-8. BLOWER DRIVE SUPPORT REPAIR
This task covers:
a. Removal
d. Assembly
b. Disassembly
e. Installation
c. Cleaning/ Inspection
f. Follow-On Maintenance
INITIAL SETUP
Equipment Conditions
Materials/Parts
Blower removed (para 4-6).
Grease, Automotive and Artillery Item 32,
Appendix B)
Tools and Special Tools
Oil, Lubricating (Item 47, Appendix B)
Tool Kit, Genl Mech (Item 202, Appendix E)
Solvent, Dry Cleaning (Item 54, Appendix B)
Caliper Set, Micrometer (Item 15, Appendix E)
Gasket (Item 45, Appendix F)
Caps, Vise Jaw (Item 17, Appendix E)
Gasket (Item 54, Appendix F)
Compressor Unit, Air (Item 24, Appendix E)
Keywasher (Item 73, Appendix F)
Gage Set, Telescoping (Item 56, Appendix E)
Lockwashers (2) (Item 118, Appendix F)
Goggles, Industrial (Item 57, Appendix E)
Pin (Item 211, Appendix F)
Dial Indicator, Magnetic (Item 32, Appendix E)
Pin (Item 212, Appendix F)
Press, Hydraulic (Item 116, Appendix E)
Washers, Copper (2) (Item 334, Appendix F)
Vise, Machinists (Item 207, Appendix E)
Wrench, Torque, 0-175 Lb-Ft (Item 236,
Appendix E)
a.
Removal

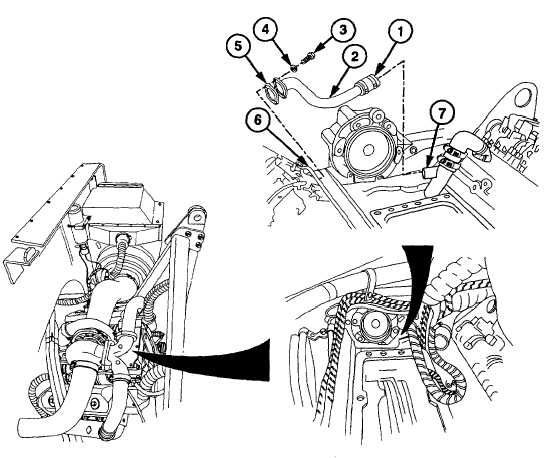

(1)
Loosen clamp (1) on crossover pipe (2).
(2)
Remove two screws (3), lockwashers (4),
gasket (5), and crossover pipe (2) from
right cylinder head (6) and breather tube
(7). Discard lockwashers and gasket.
4-26 Change 1
|
