b.

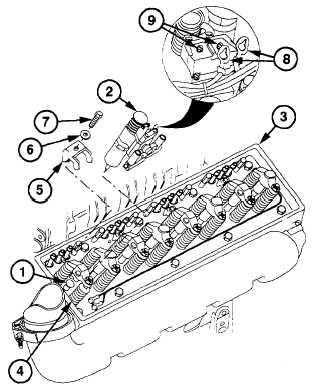

Installation
(1)
Remove cover from injector tube hole (1).
(2)
Install injector (2) in injector tube hole (1)
in cylinder head (3). Align injector (2)
visually for equal clearance between valve
springs (4).
CAUTION
Ensure clamp does not interfere with
valve springs. Damage to equipment
may result.
(3)
Install clamp (5), convex washer (6) with
curve down, and screw (7). Torque to
240-300 lb-in. (27.1-33.9 Nm).
(4)
Connect wire harness (8) to injector (2)
with retaining screws (9).
