TM 9-2320-360-34-1
3-28. ENGINE TESTING (CONT)
(43)

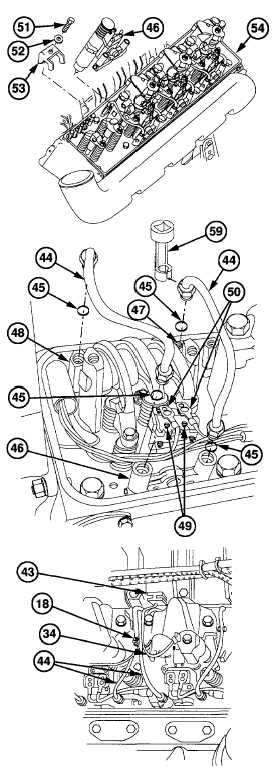

Install injector (46) in cylinder head (54)
with clamp (53), convex washer (52), and
screw (51).
(44)
Tighten screw (51) to 240-300 lb-in. (27.1-
33.9 Nm).
(45)
Install two wire terminals (50) and tighten
two retaining screws (49) on injector (46).
(46)
Install four new seal rings (45) and two
pipes (44) on injector (46) and fuel return
connector (47) and fuel inlet connector
(48) using fuel line nut wrench (59).
Torque to 145 lb-in. (16.4 Nm).
NOTE
Do step (47) for middle two cylinders
only.
(47)
Install rubber harness support (43) on fuel
pipes (44).
NOTE
Plastic cable tie should be positioned
in location marked during removal.
(48)
Secure solenoid valve wire (34) to fuel
pipes (44) with plastic cable tie (18).
3-148 Change 3
|
