TM 9-2320-360-34-1
(38)

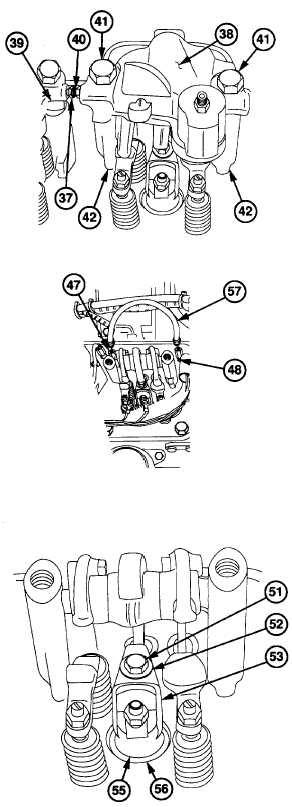

Loosen connector nut (37) between left
brake (39) and right brake (38).
(39)
Screw connector (40) into left brake (39)
to clear right brake (38).
(40)
Remove two screws (41) and brake (38 or
39) from two mounting posts (42).
(41)
Remove jumper fuel pipe (57) from fuel
inlet
connector
(48)
and
fuel
return
connector (47).
NOTE
Rocker arm assembly can be lifted
for easier access to injector screw.
(42)
Remove screw (51), convex washer (52),
clamp (53), and gage adapter (55) from
injector tube (56).
3-147
|
