TM 9-2320-360-34-1
NOTE
Gage adapter must be installed with
gage fitting facing out.
(27)

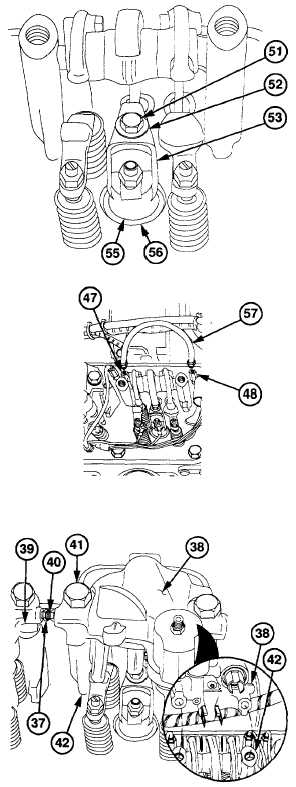

Install gage adapter (55) in injector tube
(56) with clamp (53), convex washer (52),
and screw (51). Torque screw to 240-300
lb-in. (27.1-33.9 Nm).
NOTE
Jumper fuel pipe is carefully bent to
desired shape to make connection
between
fuel
inlet
and
return
connectors.
(28)
Install jumper fuel pipe (57) on fuel inlet
connector (48) and fuel return connector
(47). Torque to 145 lb-in. (16.3 Nm).
NOTE
Holes in rocker arm shaft must be
aligned with holes in mounting posts.
(29)
Install brake (38 or 39) on two mounting
posts (42) with two screws (41). Torque
to 90-100 lb-ft (122-136 Nm).
CAUTION
Connector must be backed off to
allow movement of brake and rocker
arm assemblies. Failure to comply
may result in damage to equipment.
(30)
Unscrew connector (40) from left brake
(39) until connector contacts right brake
(38).
(31)
Back off connector (40) 1/3 turn away
from right brake (38).
(32)
Hold connector (40) and tighten nut (37)
against left brake (39).
3-145
|
