TM 9-2320-360-34-1
3-28. ENGINE TESTING (CONT)
NOTE
·
Location of plastic cable tie
should
be
marked
before
removal.
·
Do steps (11) and (12) for left
rocker cover only.
(11)

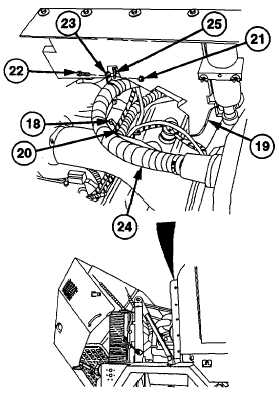

Remove plastic cable tie (18) securing
ether start hose (19) to breather tube (20).
(12)
Remove locknut (21), screw (22), and clip
(23), and air aspiration hose no. 2938 (24)
from firewall (25). Discard locknut.
(13)

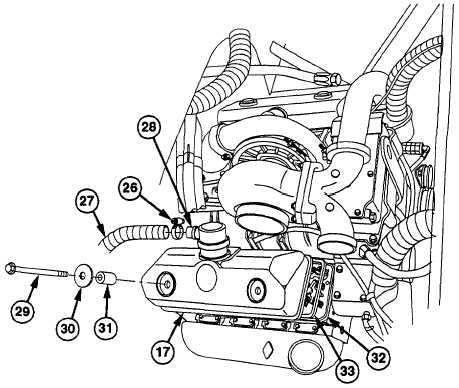

Remove clamp (26) and hose (27) from
breather retainer (28).
(14)
Remove two screws (29), washers (30),
and mounts (31) from rocker cover (17).
(15)
Remove rocker cover (17) from cylinder
head (32).
(16)
Remove gasket (33) from rocker cover
(17). Discard gasket.
3-142
|
