CAUTION
Connector must be backed off to
allow movement of brake and rocker
arm assemblies. Failure to comply
may result in damage to equipment.
NOTE
Forward set on left cylinder head is
shown.
(9)

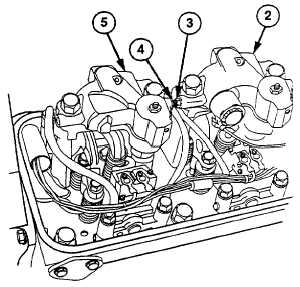

Unscrew connector (3) from left brake (5)
until connector (3) contacts right brake (2).
(10)
Back off connector (3) 1/3 turn away from
right brake (2).
(11)
Hold connector (3) and tighten nut (4)
against left brake (5).
(12)
Repeat steps (1) thru (11) for remaining
right and left brakes
c.
Follow-On Maintenance
(1)
Adjust exhaust valve clearance (para 3-27).
(2)
Adjust fuel injector timing (para 3-27).
(3)
Adjust engine brake retarder (para 3-27).
(4)
Install engine brake retarder wire harness (para 6-16).
(5)
Connect batteries (TM 9-2320-360-20).
(6)
Start and run engine for 10 minutes (TM 9-2320-360-10).
(7)
Turn on engine brake switch (TM 9-2320-360-10).
(8)
Open throttle to full engine speed and release.
(9)
Check engine brake operation when returning to idle.
(10)
Repeat full-throttle and release procedure six to eight times to bleed air from engine brake system.
(11)
Shut off engine (TM 9-2320-360-10).
