3-24. WATER PUMP DRIVE GEAR REPLACEMENT (CONT)
(4)

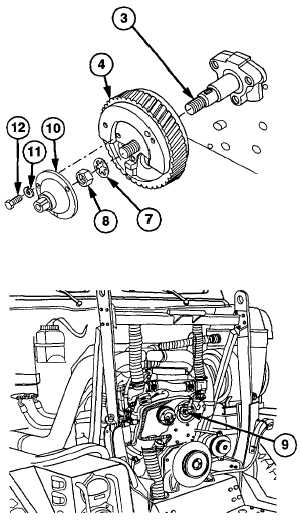

Install drive gear (4), new lockwasher (7),
and retaining nut (8) on shaft (3) while
assistant holds camshaft nut (9). Torque
nut to 300-325 lb-ft (407-441 Nm).
(5)
Install
hub
(10)
with
three
new
lockwashers
(11)
and
screws
(12).
Torque to 175 lb-in. (20 Nm).
c.
Follow-On Maintenance
Install front cover (para 3-15).
