TM 9-2320-360-34-1
(5)

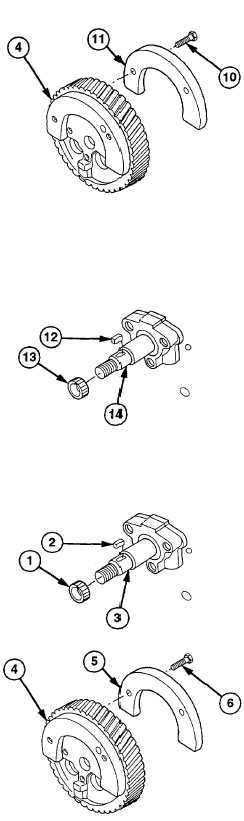

Install drive gear (4) in vise.
(6)
Remove two drive screws (10) from
balance weight (11).
(7)
Remove balance weight (11) from drive
gear (4).
(8)
Remove key (12) and spacer (13) from
shaft (14).
b.
Installation
(1)
Install spacer (1) then key (2) on shaft (3).
(2)
Install drive gear (4) in vise.
(3)
Install balance weight (5) on gear (4) with
two screws (6). Torque to 35-40 lb-ft (47-
54 Nm).
3-129
|
