3-12. CRANKSHAFT PULLEY REPLACEMENT
This task covers:
a. Removal
c. Follow-On Maintenance
b. Installation
INITIAL SETUP
Equipment Condition
Tools and Special Tools (Cont)
Radiator removed (TM 9-2320-360-20).
Wrench, Torque, 0-175 Lb-Ft (Item 236,
Fan belts removed (TM 9-2320-360-20).
Appendix E)
Wrench, Torque, 0-600 Lb-Ft (Item 233,
Tools and Special Tools
Appendix E)
Tool Kit, Genl Mech (Item 202, Appendix E)
Hammer, Soft-Faced (Item 63, Appendix E)
Materials/Parts
Puller, 3-Leg (Item 120, Appendix E)
Oil, Lubricating (Item 47, Appendix B)
Wrench Set, Socket, 3/4 In. (Item 231,
Appendix E)
Personnel Required
Two
a.
Removal

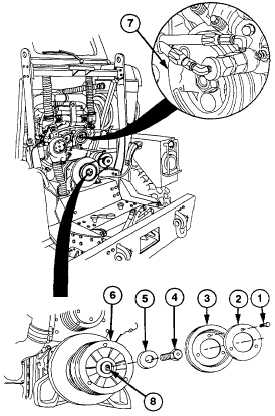

(1)
Remove three screws (1), pulley spacer
(2), and accessory pulley (3).
(2)
Remove screw (4) and washer (5) from
crankshaft pulley (6) while assistant holds
camshaft pulley (7).
(3)
Install screw (4) in crankshaft (8).
