TM 9-2320-360-34-1
3-10. CYLINDER HEAD REPLACEMENT (CONT)
NOTE
Compression
gaskets
are
color
coded black, red, or no paint on
outside edge. Be sure to note color
for placement.
(20)

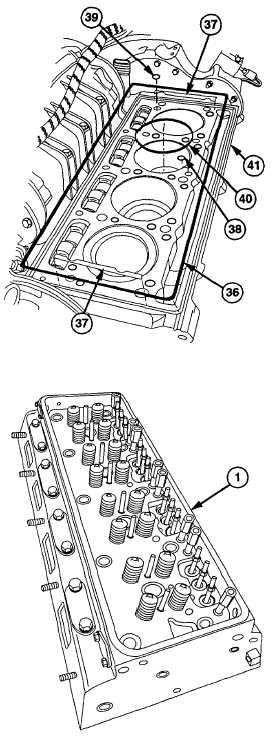

Remove seal strip gasket (36), 2 support shims
(37), 16 water seals (38), oil seal (39), and 4
compression gaskets (40) from engine block
(41). Discard seals and gaskets.
b.
Cleaning/Inspection
WARNING
Dry cleaning solvent P-D-680 is toxic
and flammable. Wear protective
goggles and gloves and use only in a
well-ventilated area. Avoid contact
with skin, eyes, and clothes, and
don't breathe vapors. DO NOT use
near open flame or excessive heat.
The flash point is 100-138° F (38-
59° C). If you become dizzy while
using cleaning solvent, get fresh air
immediately and medical aid. If
contact with eyes is made, wash your
eyes with water and get medical aid
immediately.
(1)
Clean cylinder head (1) with dry cleaning
solvent.
WARNING
Compressed
air
for
cleaning
purposes will not exceed 30 psi (207
kPa). Use only with effective chip
guarding and personal protective
equipment (goggles/shield, gloves,
etc.).
(2)
Dry cylinder head (1) with compressed air.
(3)
Inspect cylinder head mounting surface to
be sure it is dean and free from burrs.
3-76
|
