Remove screw (8), lockwasher (9), and
cushion clip (10) from engine lifting
bracket (11). Discard lockwasher.
NOTE
Do step (4) for left cylinder head only.
(4)
Remove screw (12) from engine lifting
bracket (11).
(5)
Remove engine lifting bracket (11) and
gasket (13) from cylinder head (7).
Discard gasket.
NOTE
Do steps (6) thru (8) for right cylinder
head only.
(6)

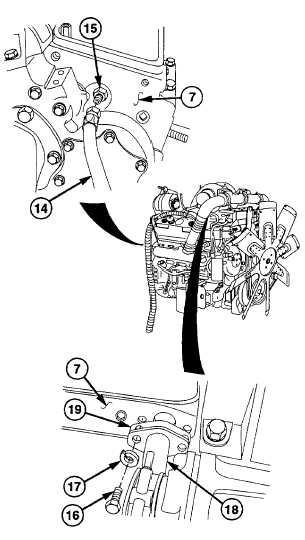

Remove coolant hose no. 2628 (14) from
fitting (15) on cylinder head (7).
(7)
Remove two screws (16) and lockwashers
(17) from cylinder head (7). Discard
lockwashers.
(8)
Move breather tube (18) away from
cylinder head (7). Remove and discard
gasket (19).
