3-10. CYLINDER HEAD REPLACEMENT
This task covers:
a. Removal
c. Installation
b. Cleaning/Inspection
d. Follow-On Maintenance
INITIAL SETUP
Equipment Conditions
Tools and Special Tools (Cont)
Left thermostat housing removed (left cylinder
Straight Edge (Item 185, Appendix E)
head only) (para 5-3).
Wrench, Torque, 0-600 Lb-Ft (Item 233,
Right thermostat housing removed (right
Appendix E)
cylinder head only) (para 5-4).
Wrench, Torque, 0-175 Lb-Ft (Item 236,
Exhaust manifold removed (para 3-23)
Appendix E)
Valve bridges removed (para 3-11).
Fuel injectors removed (para 4-2).
Materials/Parts
Radiator and shroud removed
Adhesive, Spray (Item 10.1, Appendix B)
(TM 9-2320-360-20).
Compound, International, No. 2 (Item 21,
12-volt (rear) alternator/bracket and strap
Appendix B)
removed (right cylinder head only)
Connector, Electrical, Butt (Item 19, Appendix B)
(TM 9-2320-360-20).
Solvent, Dry Cleaning (Item 54, Appendix B)
Injector wire harness removed (para 4-3).
Tags, Identification (Item 56, Appendix B)
Gaskets (2) (Item 45, Appendix F)
Tools and Special Tools
Gasket (Item 36, Appendix F)
Tool Kit, Genl Mech (Item 202, Appendix E)
Lockwashers (4) (Item 118, Appendix F)
Blocks, Wooden (Figure C-3, Appendix C)
Lockwashers (4) (Item 121, Appendix F)
Compressor Unit, Air (Item 24, Appendix E)
Lockwasher (Item 122, Appendix F)
Fixture, Lifting (Item 42, Appendix E)
Overhaul Kit, Cylinder Head (Item 154, Appendix F)
Goggles, Industrial (Item 57, Appendix E)
Set, Cylinder Head Guide Stud (Item 157,
Personnel Required
Appendix E)
Two
NOTE
Left and right cylinder heads are
replaced in a similar manner. Left
cylinder head is shown.

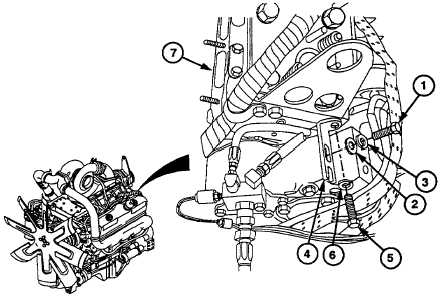

a.
Removal
(1)
Remove two screws (1), washers (2), and
lockwashers (3) from bracket (4). Discard
lockwashers.
(2)
Remove screw (5), lockwasher (6), and
bracket
(4)
from
cylinder
head
(7).
Discard lockwasher.
ENGINE SHOWN REMOVED FOR CLARITY
3-72 Change 1
|
