TM 9-2320-360-34-1
b.
Disassembly

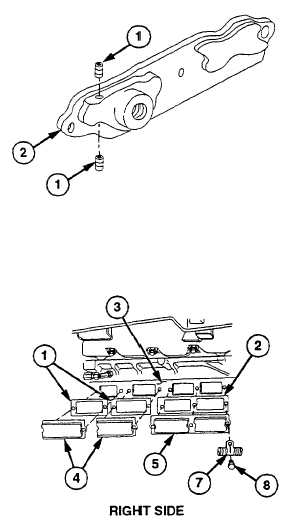

Remove two pipe plugs (1) from air box cover
(2).
c.
Assembly
WARNING
Pipe thread sealing compound can
burn easily, can give off harmful
vapors, and is harmful to skin and
clothing. To avoid Injury or death,
keep away from open fire and use In
well-ventilated area. If pipe thread
sealing compound gets on skin or
clothing, wash immediately with soap
and water.
(1)
Coat threads of two pipe plugs (1) with
pipe thread sealing compound.
(2)
Install two pipe plugs (1) on air box cover
(2).
d.
Installation
WARNING
On direct contact, uncured silicone
sealant Irritates eyes. In case of
contact, flush eyes with water and
seek medical attention. In case of
skin contact, wipe off and flush with
water.
(1)
Coat two new gaskets (1) and new gasket
(2) with silicone adhesive-sealant.
(2)
Install two gaskets (1) and gasket (2) on
engine block (3).
NOTE
Clip is on right air Lox covers only.
(3)

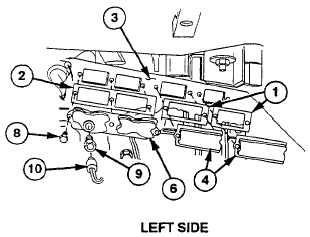

Install three air box covers (4 thru 6) and
(7) on engine block (3) with seven screws
(8). Torque to 96-144 - in. (11-16 Nm).
NOTE
Do steps (4) thru (6) for left air box
covers only.
(4)
Coat threads of reducer (9) and air box
pressure transducer (10) with pipe thread
sealing compound.
(5)
Install reducer (9) on air box cover (6).
(6)
Install air box pressure transducer (10) on
reducer (9).
3-67
|
