TM 9-2320-360-34-1
3-8. AIR BOX COVERS REPLACEMENT (CONT)
WARNING
Ensure
engine
is
cool
before
performing maintenance. Failure to
comply may result in severe burns.
NOTE
· Do step (2) for left air box covers
only.
· Clip is on right air box covers only.
(2)

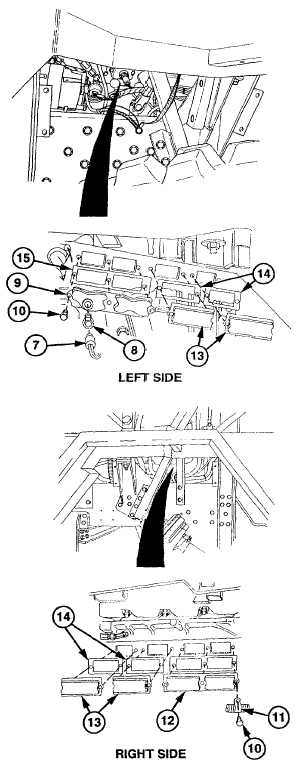

Remove air box pressure transducer (7)
and reducer (8) from air box cover (9).
(3)
Remove seven screws (10) and clip (11)
from air box covers (9, 12, and 13).
(4)
Remove air box covers (9, 12, and 13),
two gaskets (14), and gasket (15).
Discard gaskets.
3-66 Change 1
|
