TM 9-2320-360-34-1
13-6. REAR STEERING GEAR REPLACEMENT (CONT)
(15)

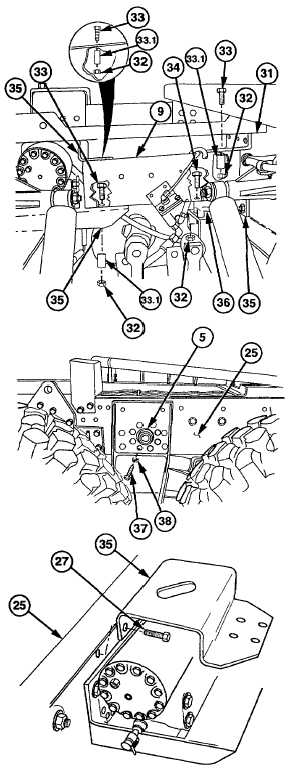

Remove 16 locknuts (32), 12 screws (33),
sleeves (33.1), and 4 screws (34) from
upper right angle bracket (31), three angle
brackets (35), and no. 4 crossmember (9)
with aid of assistant. Discard locknuts.
(16)
Remove no. 4 crossmember (9), upper
right angle bracket (31) and spacer (36)
from three angle brackets (35) with aid of
assistant.
(17)
Remove
eight
screws
(37)
and
lockwashers (38) from frame (25) and
steering gear (5). Discard lockwashers.
WARNING
Steering gear weighs 175 lb (79 kg).
Support
steering
gear
when
removing hardware to prevent it from
falling. Failure to comply may result
in injury.
(18)
Remove top left angle bracket (35) and
two screws (27) from frame (25).
13-18 Change 1
|
