TM 9-2320-360-34-1
(24)

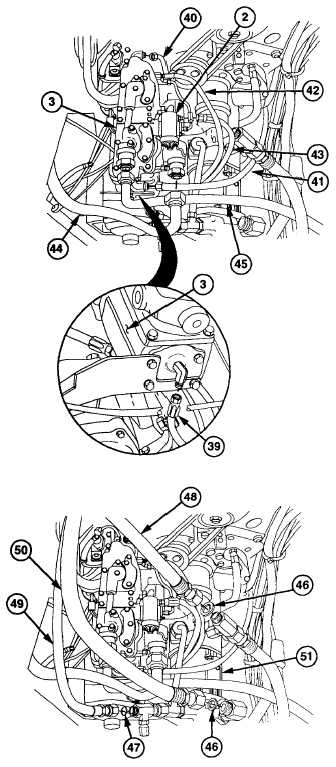

Install oil line no. 2629 (39) on compressor
(3).
(25)
Install two coolant lines no. 2628 (40 and
41) on compressor (3).
(26)
Install
air
line
no.
2096
(42)
on
compressor (3).
(27)
Install air line no. 2159 (43) on governor (2).
CAUTION
Air compressor discharge must be
installed on compressor so that it
does not contact any other hoses.
Damage to equipment may result.
(28)
Install air line no. 2600 (44) and air line
no. 2001 (45) on compressor (3).
(29)
Install three new preformed packings (46
and 47), hose no. 2778 (48), hose no.
2701 (49), and hose no. 2302 (50) on
steering pump (51).
Change 1 11-35
|
