10-3. AXLE NO. 3 REPLACEMENT (CONT)
NOTE
Air pressure must be greater than 65
psi (448 kPa) to provide sufficient
clearance to install axle.
(5)

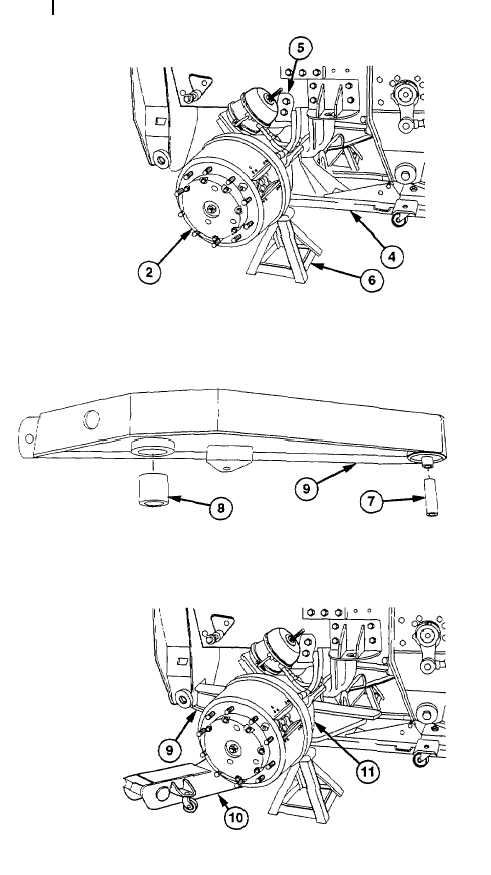

Position transmission lift (4) and axle (2)
under HET tractor.
(6)
Raise transmission lift (4) and position
axle (2) directly under axle stops (5).
(7)
Position jackstand (6) under each end of
axle (2).
NOTE
Both suspension beams are installed
the same way. Left side is shown.
(8)
Install new delrin liner (7) and new steel
sleeve (8) in suspension beam (9).
WARNING
Suspension beam is heavy and can
fall. Keep out from under suspension
beam. Failure to comply may result
in injury to personnel.
(9)
Position suspension beam (9) on floor jack
(10).
(10)
Position floor jack (10) and suspension
beam (9) below axle bracket (11).
NOTE
Axle
position
may
need
slight
adjustment. The weight of axle
should be supported by transmission
lift.
(11)
Raise floor jack (10) until suspension
beam (9) is positioned correctly in axle
bracket (11).
